Mazda MX5 NC 1.8 & 2.0 Big Brake Kits and Upgrade Parts

Direct Bolt on Big Brake kit for road and track as used on our own Race Car to Win Three consecutive Championships.

To Fit All MX5 NC Models 2006 - 2015

Quality replacement pair of Front Brake Discs

Pictures are for illustration Purposes Only

Quality replacement pair of Rear Brake Discs

Pictures are for illustration Purposes Only

Save money with the Stoptech discs and Porterfield pads combo

With this Wilwood Big Brake 310mm upgrade kit, that uses either 4 Pot or 6 Pot Callipers, you can even keep your standard Mazda 16-inch wheels plus you also have a choice of brake disc options.

You will also find a variety of calliper colours available below.

Wilwood Forged Narrow Superlite 6R Big Brake FRONT Brake Kit, GT Slotted 12.88" Rotor- Red Calliper The unsurpassed braking capacity of the Forged Narrow

Superlite 6R six-piston calliper serves as the base of this 12.88" big rotor kit. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS function.

October 21 **PLEASE NOTE ALL WILWOOD ITEMS CURRENTLY 6-8 WEEKS TO SHIP**

As fitted to our own 700BHP Race Car, this Special “Race” Big Brake Kit with Calipers Developed for NASCAR to stop the big American Stock Cars during 500 mile Races.

To fit 2006-2015 Mazda MX-5 's and RX-8 Models  featuring Big Diameter 328mm and  extra thick 28mm  wide Discs for maximum heat capacity using 6-piston callipers when under harsh race use.

These Wilwood Race Callipers are used on our own 700BHP Race Car.

This Big Brake kit with 328mm Discs has been developed by Good-Win-Racing

Lightweight Two -piece front Disc upgrade in the same size as the factory 293mm (11.5" Disc) for a "direct" fit for all 2006-2015 MX5s

Two - piece REAR Disc Upgrade in the same size as the  Mazda  factory 280mm (11") Disc, for a "drop in" fit for all 2006-2015 MX5's.

Also available with  Porterfield R4-1 DUAL PURPOSE   Brake Pads to balance  your Big Front Bake Upgrade for Street or Track Use

Keep your front brakes cool to reduce the chance of brake fade, even with race pads!

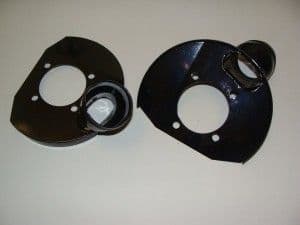

Brake cooling duct plate includes 1 each left and right steel, powder coated gloss black brake ducting plates that mount to the hub.

Connect your own 2.5" hose and intakes. Fits all 2006-2015 MX-5 with standard brake rotors.

As fitted to our 700BHP Race Car

Full-on racing or just track day drivers will suffer from overheating brakes unless proper brake cooling is installed Please choose the year of your MX-5 NC on the drop down box below.

These brake pads are for Good-Win Racing Wilwood Caliper Big Brake kits.

Fits the 4-piston Dynapro caliper.

Fits the MX5NA/NB, MX5NC & MX5ND

Will fit MX5NC, MX5ND and FIAT124 models

Our Techna-Fit MX5 brake line kits come complete with all of the fittings and bolts for easy assembly. Techna-Fit high performance stainless braided brake lines eliminate the mushy pedal feel you get when your OEM MX5 rubber lines expand.

Heavy Duty GT 3
6 Curved vane/slotted face replacement friction ring for Wilwood 12.19" big brake kits. More heat capacity and higher quality iron than the Ultralight 32 straight vane rotor, this is the best rotor Wilwood makes and is what we recommend for track use.

Price is for one pair of replacement Rotors as pictured.

These rotors are DIRECTIONAL (left and right specific), so if you order two we will send you one left and one right will be supplied.

Seal kit includes four square piston seals and four cross-over o-rings. Enough to rebuild one full 4 piston calliper.

Compatible with Dynalite 4 piston and Dynapro 4 piston callipers with 3.00in piston area, as used in many of our brake kits.

Do not order this if you do not have the Wilwood DL4 or DP4 callipers.

Cool your NC Front Brakes with these  front entry ducts  that take  2.5" brake duct hose.

Simply remove your factory front Spot Lamps and clip these in to give you cooler front brake discs and pads

These inlet ducts are made by AWR America

 Fits factory 2006-2008 or 2009-2012 bumper. Please choose below

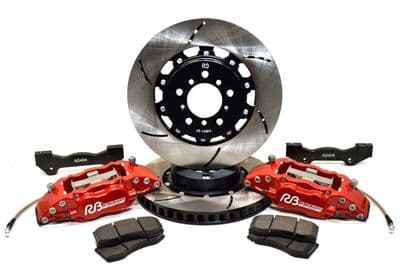

This RacingBrake kit will fit the Mazda MX5NC and RX8 models

Complete direct Bolt on Big Brake kit for road and track as used on our own Race car to Win Three consecutive Championships.

Rear Racingbrake lightweight Discs are an option below to add if you wish.

Replacement 309x32mm slotted brake rotor for StopTech C43 big brake kits for 2006-2015 MX5, 2016+ MX5, and 2017+ Fiat 124.

This is for StopTech's latest AEROROTOR with curved internal vanes. StopTech is discontinuing the pillar vane bi-directional rotors that used to come in those big brake kits, so if you have those rotors now and are looking for replacements, THIS is the correct new replacement for your rotors.

*Price is for ONE disc. If you need TWO discs, then order two.*

These are typically special order from StopTech. Please allow 5-6 weeks.

This Special new to  the market Wilwood Race FRONT  Brake kit, is configured for dedicated Circuit Racing use with Spec37 alloy, GT competition series 328mm Discs  are 28mm thick and feature 48 curved internal vanes for maximum cooling. To fit all MX-5 and RX-8 Models,

Comes with Wilwood BP-30 brake pads: high temperature, high friction, endurance race compound. These are for RACE use. Extended low temperature use will cause premature rotor and pad wear..

Wilwood Race Callipers are used on our own 700BHP Race Car.
