Mazda MX5 NA/NB Wheels & Wheel Accessories

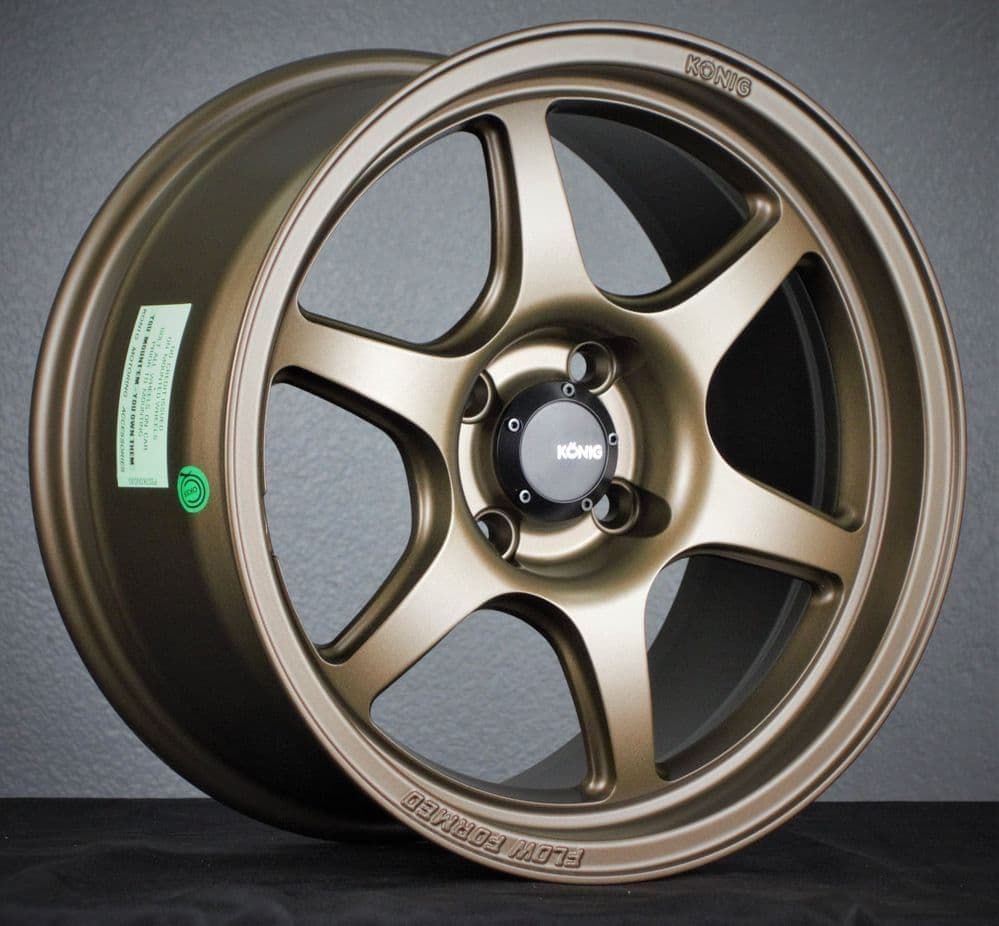

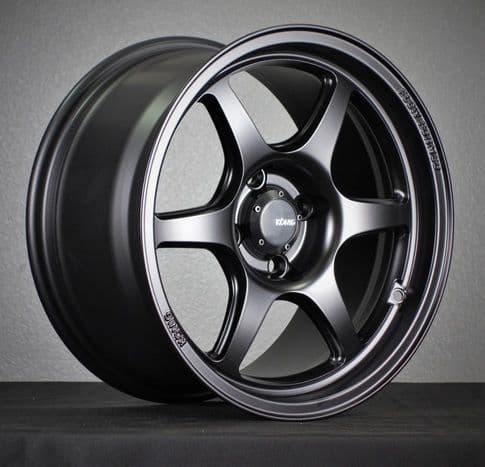

MX5 NA/NB Konig Hexaform 15x9 +35 Matte Black or Bronze Wheels

MX5 NA/NB Konig Hexaform 15x9 +35 Matte Black or Bronze Wheels

£854.44
PayPal Checkout
Stock Status: In Stock
This new 15x9 version of the Hexaform is exclusive to Good-Win Racing. The Hexaform is a 6-spoke design built with flow-forming technology for ultra low weight with high strength, including a big 550kg load rating in this size. Price quoted is for a set of 4 wheels.
You will earn 1025 points with this purchase
This new 15x9 version of the Hexaform is exclusive to Good-Win Racing.

The Hexaform is a 6-spoke design built with flow-forming technology for ultra low weight with high strength, including a big 550kg load rating in this size.

Available matte black or matte bronze. Konig integrated feedback from their motorsport teams, racers and drivers into the new Hexaform. The face was pushed out to allow for as much brake calliper protrusion as well as overall brake diameter near the drop centre. This provides excellent calliper clearance for aftermarket big brake kits.

Wheels Specs:
*15x9
*4X100
*35mm offset
*73.1mm bore
*Weight 13.4 pounds. (6 kilos)

1990-2005 MX5 Brake Clearance Notes:
Clears Wilwood 11" BBK,
StopTech 11" BBK, Goodwin Racing Version 5 11.75" BBK.

APPLICATION NOTES: Flow formed and very nicely finished. ONE CAUTION, it seems Konig is trying to play more like Enkei and included cast aluminium fancy centre caps instead of industry standard cheap snap-

snap-on plastic caps. The result looks high end compared to plastic caps on wheels of similar cost but BE CAREFUL to do little more than finger tight with the very tiny allen head screws that attach the caps, use a dab of loctite, do NOT apply significant torque to the screws or they will strip out immediately!

WHAT IS FLOW FORMING?
Flow Forming Technology involves the application of pressure to the inner barrel of the wheel, while spinning & after it has been casted. This process shares similarities to that found in the forging process in which the aluminium molecules are compressed resulting in a lighter & stronger wheel with greater shock resistance & elongation properties.

  • Product Code:
  • Wheel Size:
    15x9
  • Colour:
    Matte Black or Bronze
