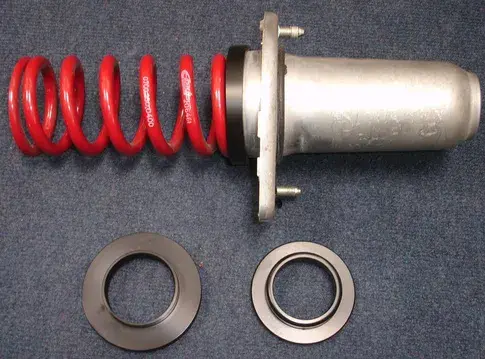

Picture shows one Delrin Upper Spring Perch in action between the spring and the Factory aluminium top hat and another Delrin Top Perch is in bottom left of picture (bottom right item is for helper springs and NOT included). NOT FOR USE IN COILOVER CONVERSIONS, must be a REAL COILOVER wherein you can have some pre-load on springs.

INSTALL NOTES:- you need about 3/8th spacer to get the shock more straight so it won't rub the Delrin adaptor and 5mm longer bolt (40mm instead of stock 35mm bolt).

Depending on the coilover you may also need to look at the sleeve that slides into the bottom of the shock (on our Ohlins the provided sleeve is sufficient). We offer those bolts and spacers as a separate item in our store.

NOTE you likely MUST use shorter springs in 70mm diameter with this item like we did and noted above. Most use either 6 inch or 7 inch rear springs, depending on the coilover and how low they want to set their MX5. Note we cannot tell you the perfect spring length because there are too many variations in coilover design (some bottom couplers are long, some are short, etc).

Be prepared to take your own measurements and figure it out, perhaps some trial and error on spring lengths, or do NOT order this item.
