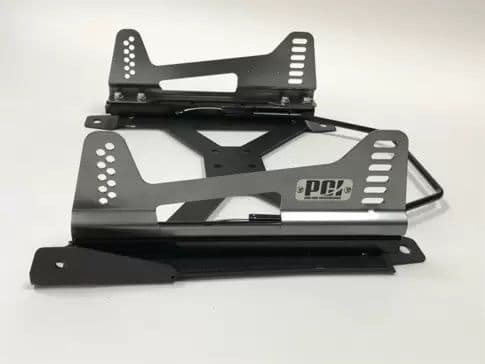

Pro Car Innovations Seat Mounts take the guessing game out of installing a race seat in your MX5. The PCI Seat Mount is our top choice for getting the lowest seat fitment possible with a bolt-in seat mount. To get any lower would require cutting the chassis.

This version with slider takes PCI's low profile seat mount design and adds a slider in between the base and the side brackets for those who need the slider function. Keep in mind that the slider adds some height (about 3/4 of an inch) compared to PCI's non-sliding seat mount, available elsewhere on our site. Taller folks who are trying to get as low as possible should consider our other PCI seat mount that does not have a slider and can therefore get you even lower. But for those who must have a slider (multiple drivers with different leg lengths for example), this is the most low-profile seat mounting option that has a slider incorporated in it.

Features

• Precision CNC laser cut and bent from 1/8" 3mm carbon steel.
• One piece no weld design
• Multi way adjustability
• PCI S1 high strength sliders, mounts to base with 4 bolts per slider
• 5- and 6-point sub belt mounting locations
• Single tool adjustments with bottom locking hardware
• Zinc plated hardware
• Powder coated base and side mounts.
• Stainless steel laser etched logo plates.
• Delrin side mount spacers included in kit.

Benefits

• The bottom bracket is a CNC bent one piece design that allows for use of lighter 1/8 steel vs. heavy 3/16.
• Uniquely designed for the MX5 for the best possible fitment
• Mounts to factory bolt locations with precise factory fitment
• Includes holes for 5- and 6-point sub belt mounting.
• Hassle free easy installation.

Specs

• 3mm carbon steel
• CNC laser cut; CNC bent.
• Black wrinkle/silver powder coat
• Zinc plated grade 8 hardware
• +/- 10 degrees seat tilting

Why 1/8 steel vs. 3/16 steel?

It is simple! PCI mounts are cut and formed completely from one piece. With this design the mounts can achieve the same strength if not more by having bends and altering the shape to areas where increased strength and stiffness is required. So, don t be fooled by bigger and heavier is better. 3/16 is more widely used for the simplicity of design, manufacturing and the ease of welding.

Does not include seat mounting hardware, those bolts are typically included with the seat.
