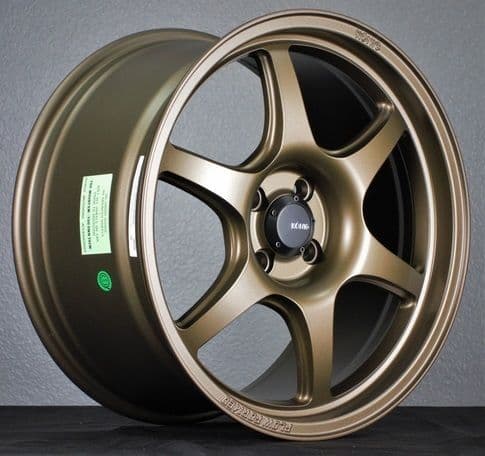

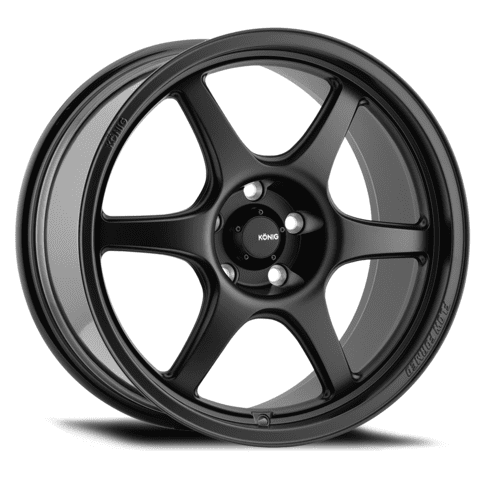

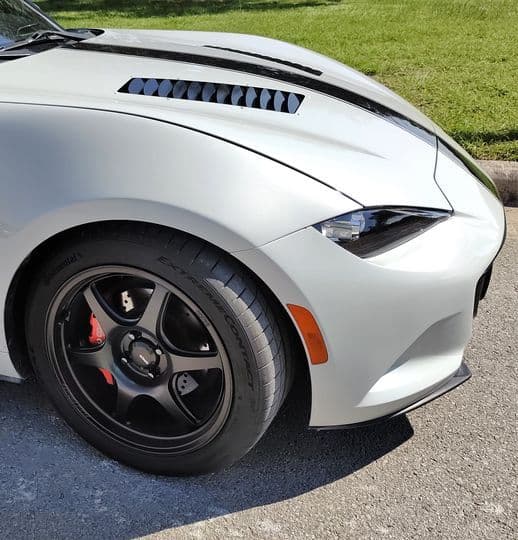

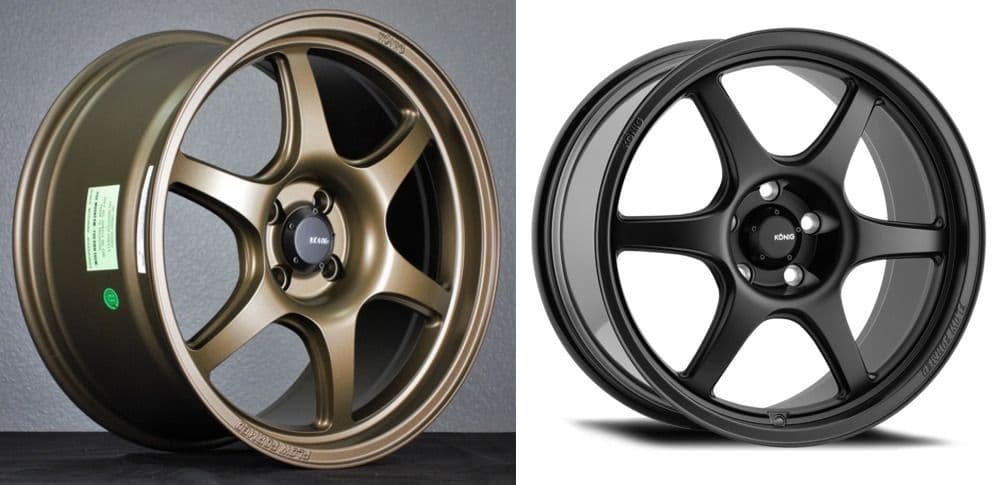

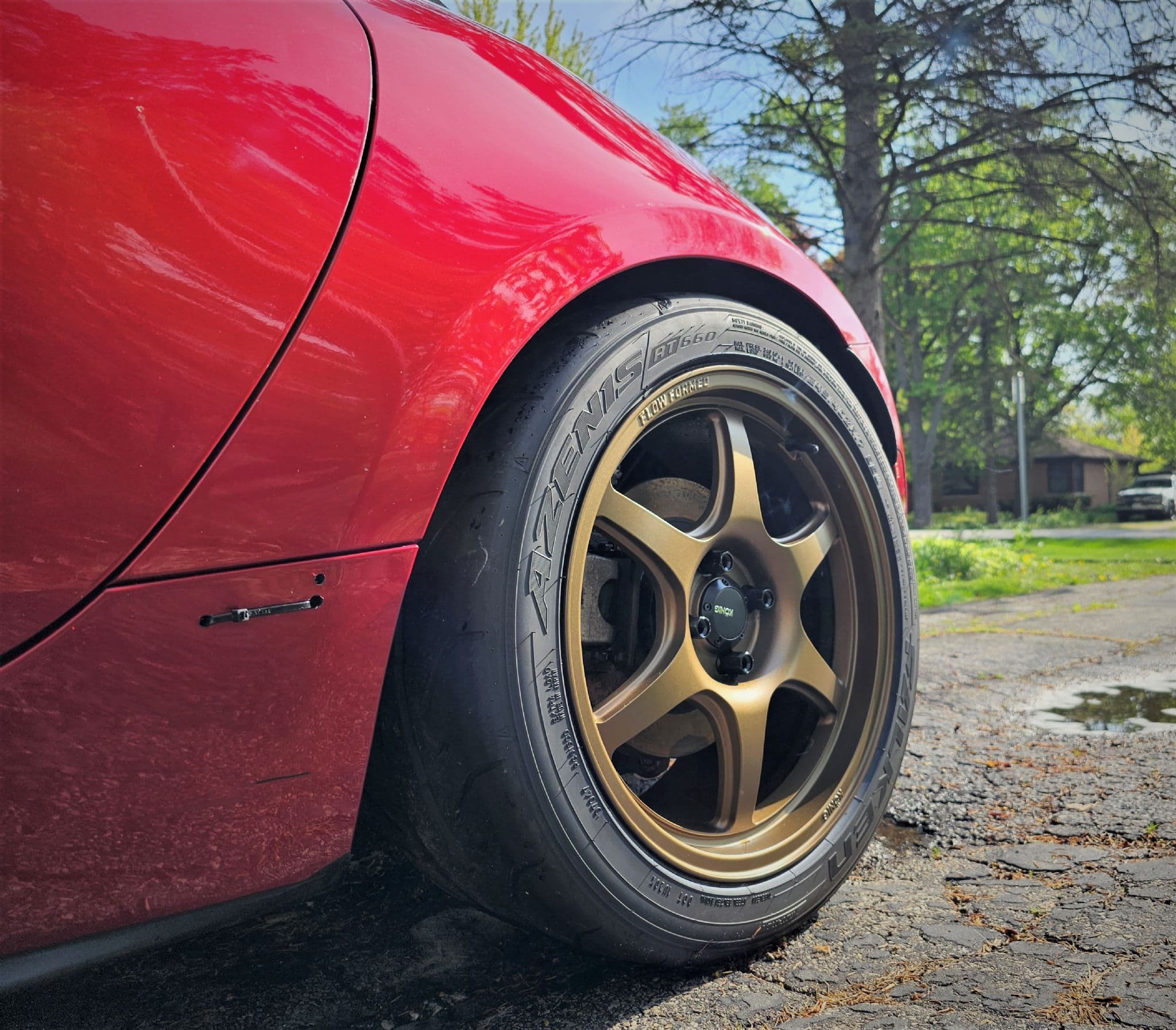

The Hexaform is a NEW 6-spoke design built with flow-forming technology. Available matte black or matte bronze. Konig integrated feedback from their motorsport teams, racers and drivers into the new Hexaform.

The face was pushed out to allow for as much brake calliper protrusion as well as overall brake diameter near the drop centre. This provides excellent calliper clearance for aftermarket big brake kits. Extra strong load rating in this size of 700kg/1543 lbs to handle the worst real world potholes and the hardest curb abuse at the track!

Wheels Specs:
*17x9
*4X100
*45mm offset
*73.1mm bore
*Weight 18.5 lbs (8kgs)

MX5 ND/Fiat 124 Brake Clearance Notes:
YES, clears our 12.88" Big Brake Kits - both 4 and 6 piston
YES, factory Brembo calliper on our 12.75" Big Rotor Kit clears!
Does NOT clear factory Brembo Brakes on factory 11" rotor size (would need 8mm spacer or more)
StopTech BBK requires 5mm spacer

APPLICATION NOTES: Flow formed and very nicely finished. ONE CAUTION, it seems Konig is trying to play more like Enkei and included cast aluminium fancy centre caps instead of industry standard cheap snap-on plastic caps. The result looks high end compared to plastic caps on wheels of similar cost but BE CAREFUL to do little more than finger tight with the very tiny allen head screws that attach the caps, use a dab of loctite, do NOT apply significant torque to the screws or they will strip out immediately!

WHAT IS FLOW FORMING?
Flow Forming Technology involves the application of pressure to the inner barrel of the wheel, while spinning & after it has been casted. This process shares similarities to that found in the forging process in which the aluminium molecules are compressed resulting in a lighter & stronger wheel with greater shock resistance & elongation properties.
