Product Description

The ultimate Xtreme Twin Plate for your RX-7 TII, RX-8, RX-7FD3S This is a push type Clutch assembly that will hold 900 (ftlbs) / 1220 Nm of Torque, so this would take 4 Rotor Turbo Power!!

It can also be used in an RX-7 FD3S by using the 5 speed RX-8 Bellhousing assembly to convert from the Pull type clutch.

Tech info:-

Flywheel Step (mm): +2.5

Clutch Disc Diameter (mm): 184

Clutch Disc Spline Count: 23

Clutch Disc Spline Diameter (mm):25.4

Disc Type: Solid

Friction Material: Ceramic

Multiplate: Twin

Recommended Use: Track

Torque (Nm) Inc FOS: 1220

Torque (ft lbs) Inc FOS: 900

Spigot Bush/Bearing Included: Yes

Aligning Tool Included: Yes

Flywheel Included: -Single Mass-Lighten Chromoly

Flywheel Bolts Included: Yes

Pressure Plate Bolts Included: Yes

Spline Grease Included: Yes

Transport Weight (kg): 10.5

Customer Reviews

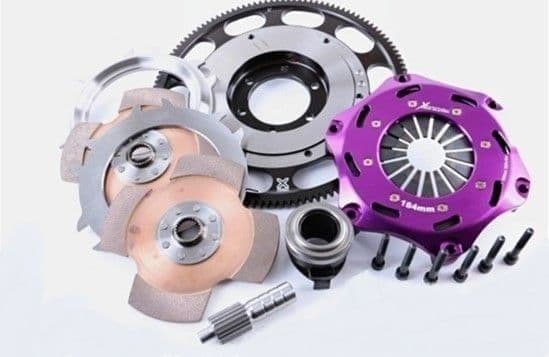

RX8 & RX7FC Xtreme Performance Twin Plate clutch and Flywheel assembly

Item in Stock

The ultimate Xtreme Twin Plate for your RX-7 TII, RX-8, RX-7FD3S This is a push type Clutch assembly that will hold 900 (ftlbs) / 1220 Nm of Torque, so this would take 4 Rotor Turbo Power!

It can also be used in an RX-7 FD3S by using the 5 speed RX-8 Bellhousing assembly to convert from the Pull type clutch.
