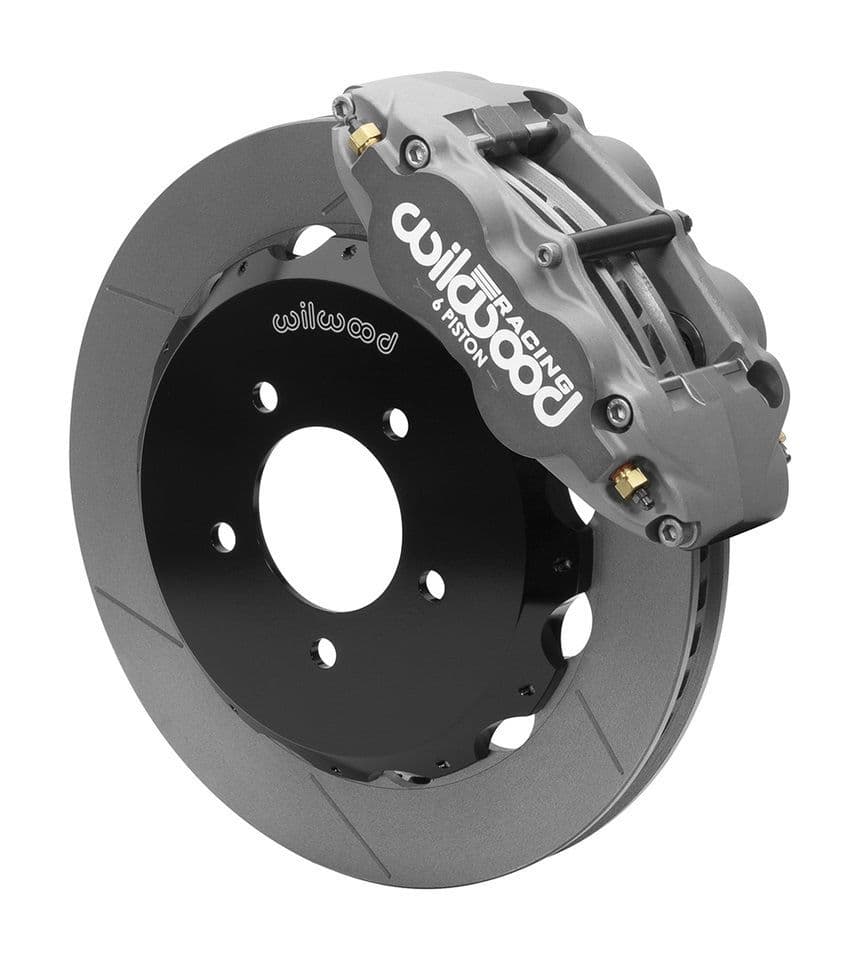

Wilwood Circuit FRONT Race Brake kit to fit all MX5NC & RX8 Models.
Wilwood Circuit FRONT Race Brake kit to fit all MX5NC & RX8 Models.
Wilwood Circuit FRONT Race Brake kit to fit all MX5NC & RX8 Models.
Wilwood Circuit FRONT Race Brake kit to fit all MX5NC & RX8 Models.

Product Description

Requires 17 or larger wheels designed with additional inside clearance. Does not clear factory MX-5 wheels.

The six piston Forged Narrow Superlite radial mount callipers used in this kit feature a forged aluminium body with a Type III Mil-Spec hard anodized, medium Gray colour finish. ONLY available in this finish. These callipers feature Thermlock pistons to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the calliper body, fluid, and seals.

Spec37 alloy, GT competition series 328mm Discs  are 28mm thick and feature 48 curved internal vanes for maximum cooling.

Comes with Wilwood BP-30 brake pads: high temperature, high friction, endurance race compound. These are for RACE use. Extended low temperature use will cause premature rotor and pad wear.

Wilwood Circuit Race Brake kit to fit all MX-5 and RX-8 Models.

Pictures are for illustration purposes only

Customer reviews

No reviews left yet
Write A Review

Requires 17 or larger wheels designed with additional inside clearance. Does not clear factory MX-5 wheels.

The six piston Forged Narrow Superlite radial mount callipers used in this kit feature a forged aluminium body with a Type III Mil-Spec hard anodized, medium Gray colour finish. ONLY available in this finish. These callipers feature Thermlock pistons to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the calliper body, fluid, and seals.

Spec37 alloy, GT competition series 328mm Discs  are 28mm thick and feature 48 curved internal vanes for maximum cooling.

Comes with Wilwood BP-30 brake pads: high temperature, high friction, endurance race compound. These are for RACE use. Extended low temperature use will cause premature rotor and pad wear.

Wilwood Circuit Race Brake kit to fit all MX-5 and RX-8 Models.

Pictures are for illustration purposes only
No reviews left yet
Write A Review

Customer Reviews

Wilwood Circuit FRONT Race Brake kit to fit all MX5NC & RX8 Models.

Item in Stock

This Special new to  the market Wilwood Race FRONT  Brake kit, is configured for dedicated Circuit Racing use with Spec37 alloy, GT competition series 328mm Discs  are 28mm thick and feature 48 curved internal vanes for maximum cooling. To fit all MX-5 and RX-8 Models,

Comes with Wilwood BP-30 brake pads: high temperature, high friction, endurance race compound. These are for RACE use. Extended low temperature use will cause premature rotor and pad wear..

Wilwood Race Callipers are used on our own 700BHP Race Car.
